Sports Radar SRDL-1836-KIT
25' RJ45 Cable
Sports Radar SRDL-1836-KIT
DL1811 (LED) Display
WA-12VDC 5Amp AC Adapter

Sports Radar SRDL-1836-KIT

Sale price$2,999.00
Free Shipping!
Talk to an expert(888) 466-0009

SRDL-1836-KIT Sports Radar

Sports Radar kits are precision training instruments for coaches, players and enthusiasts. Read and display accurate ball and swing speeds for various sports, including but not limited to: baseball, softball, tennis, bowling, golf, auto racing, and more. The included SR3600 radar gun is full featured, reliable, durable and easy to use. Just point and pull the trigger and the target speed is displayed. Our advanced microprocessor based speed detection calculates speeds in just a few feet of target travel.

The DL1811 Display with 2 large 18" digits is perfect for Auto Drag Strip racing
Baseball fields, softball fields, lacrosse, hockey
Any sport or event that you need to get peoples attention or the audience a long distance from the LED Display.

** Max Speed Display can show is 99 MPH or Km/H

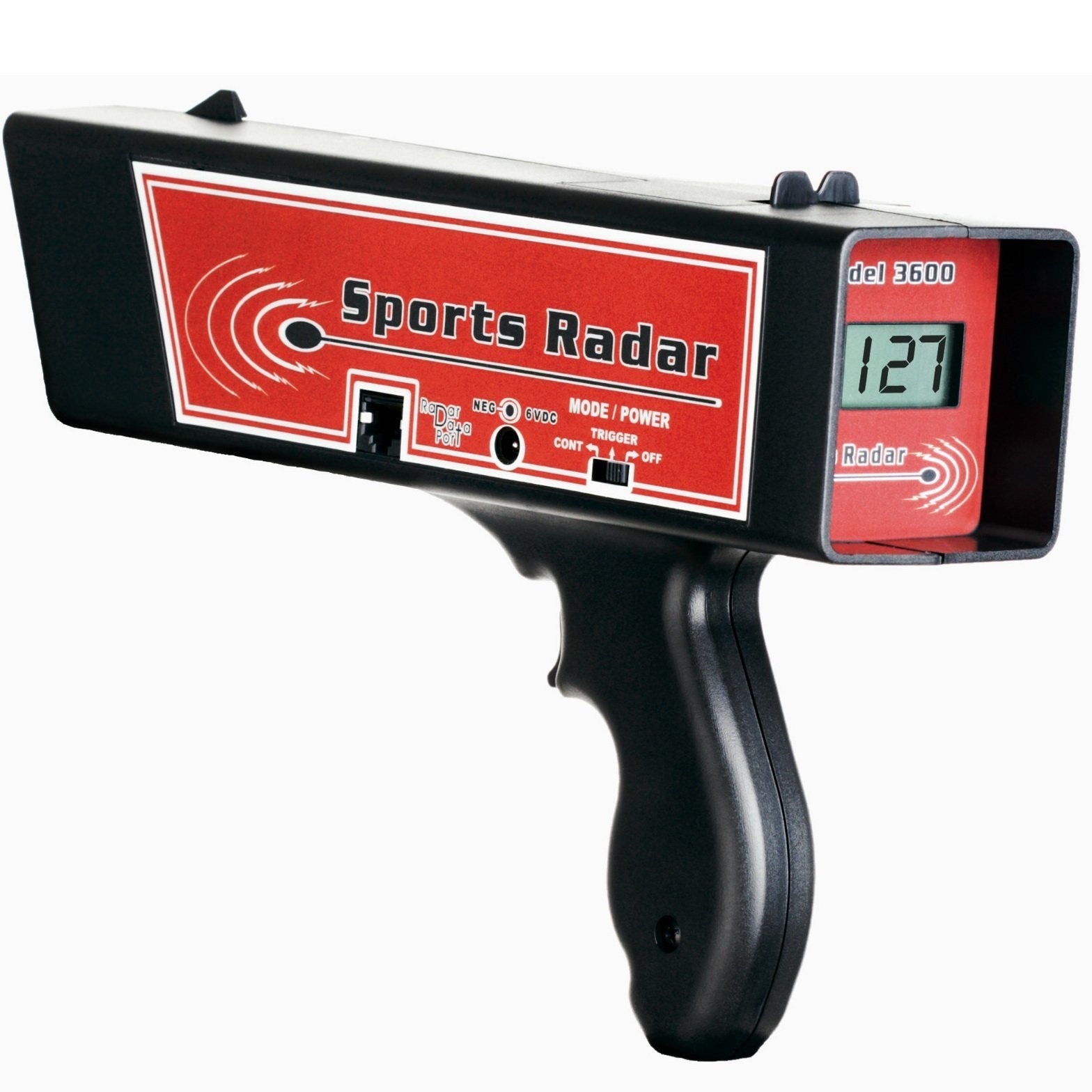

  • SR3600:
  • Mechanical: length, 10-3/4"; width, 2-3/4"; height, 7-1/4"; weight, 1 lb.
  • Display Type: 3 digit LCD
  • Speed Range: 10MPH (16 Km/H) to 256MPH (411 Km/H)
  • Speed Units: Miles Per Hour (MPH) or Kilometers per Hour (Km/H)
  • Lightweight high impact resistant design
  • Point and Shoot technology
  • Range: typically 60' on balls, 1,000' on cars
  • Accuracy/ resolution: 3% / 1 MPH or 1 Km/H
  • Displays speeds in MPH or Km/H
  • Trigger or Continuous modes
  • Tripod Mount
  • Data Port
  • External Power Jack
  • Audio Indicator
  • Standard 9V battery operation (2 required)
  • Battery Operating Life Over 5 hours of continuous use, typical 50 hours in
  • trigger mode.
  • Low Battery Indicator
  • Weight: 1.5 lbs.
  • Operating Temperature 14-130 degrees F Storage Temperature -22-158
  • degrees F (excluding batteries)
  • Frequency: X-Band 10.525Ghz
  • 1 Year Limited Warranty

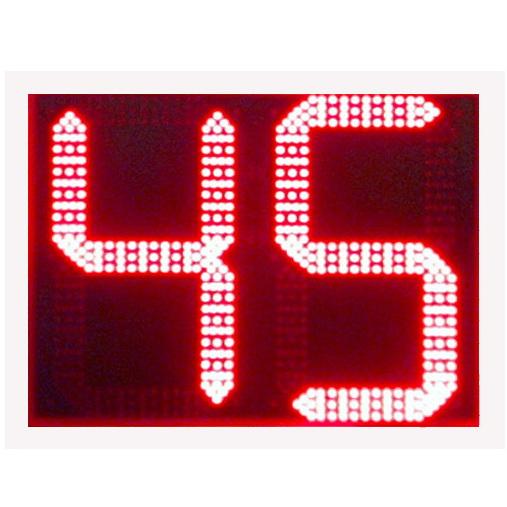

DL1811 Two 18" digits :
Sports Radar's DL1811, 18' Digit RED LED Display. Perfect for stadium viewing for all speeds from 1-99mph.
Single radar data port for use with any of our radar guns or NFSC radar units.
Viewable up to 1,000' day or night time use, it is never to bright with the Auto Dimming sensor.
Readings Up to 99
Comes with a 5amp power supply.
Frame is .090 Aluminum White Powder Coat, with 1/8" Red Plexi cover and a velvet text overlay to resist scratches, dust, and finger prints.
1-Year Limited warranty
Made in the USA

Unit can be mounted using the installed hangers on the back of the unit.

 Kits Include:

  • SR3600 Radar Gun
  • DL1811 (LED) Display
  • WA-12VDC 5Amp AC Adapter

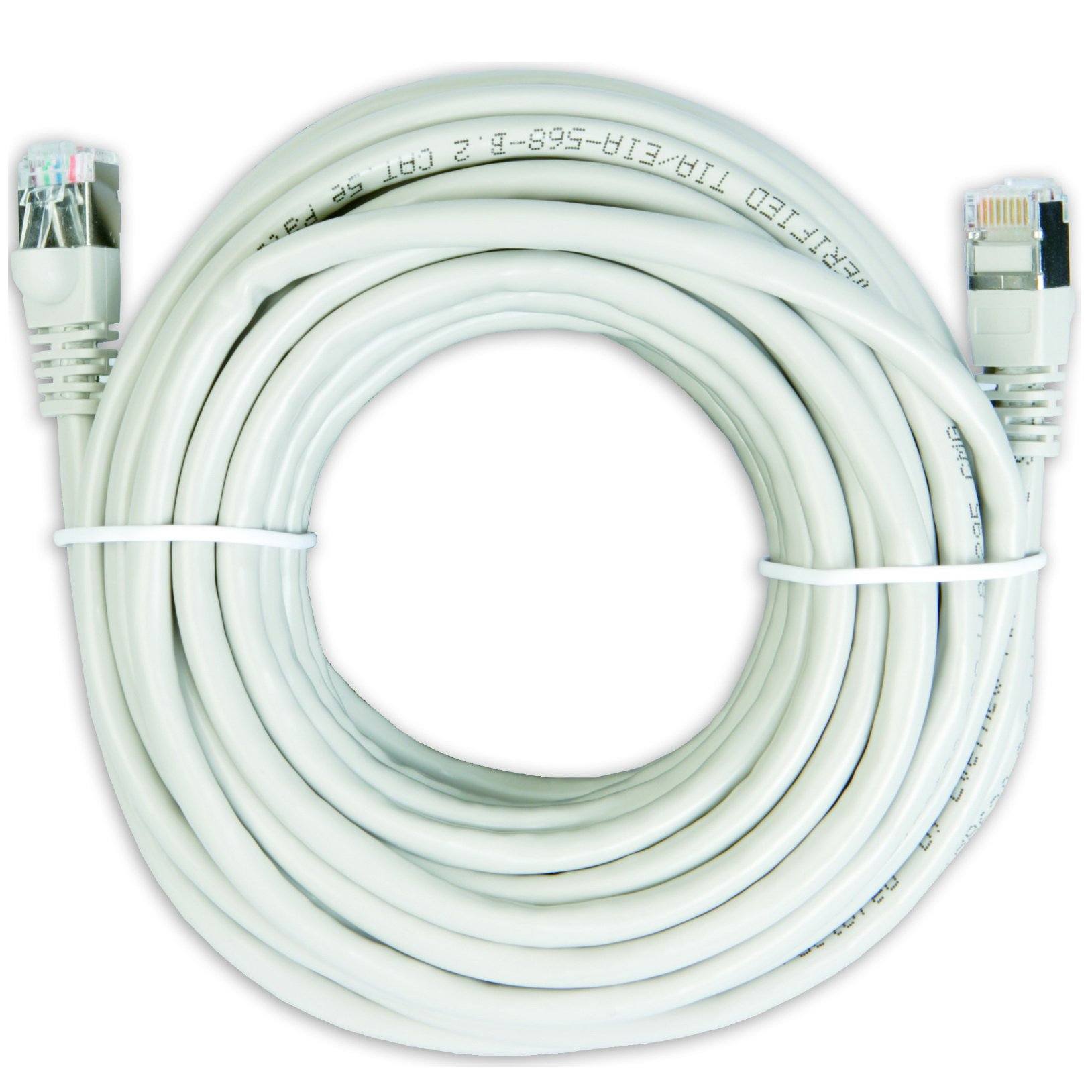

  • 25' RJ45 Cable
  • 1 Year Limited Warranty
