55' - 70' Suspended Air Frame Batting Cage with Winch Semi Side View
55' - 70' Suspended Air Frame Batting Cage with Winch

55' - 70' Suspended Air Frame Batting Cage with Winch

Sale price$5,889.00


Free Shipping!
Talk to an expert(888) 466-0009

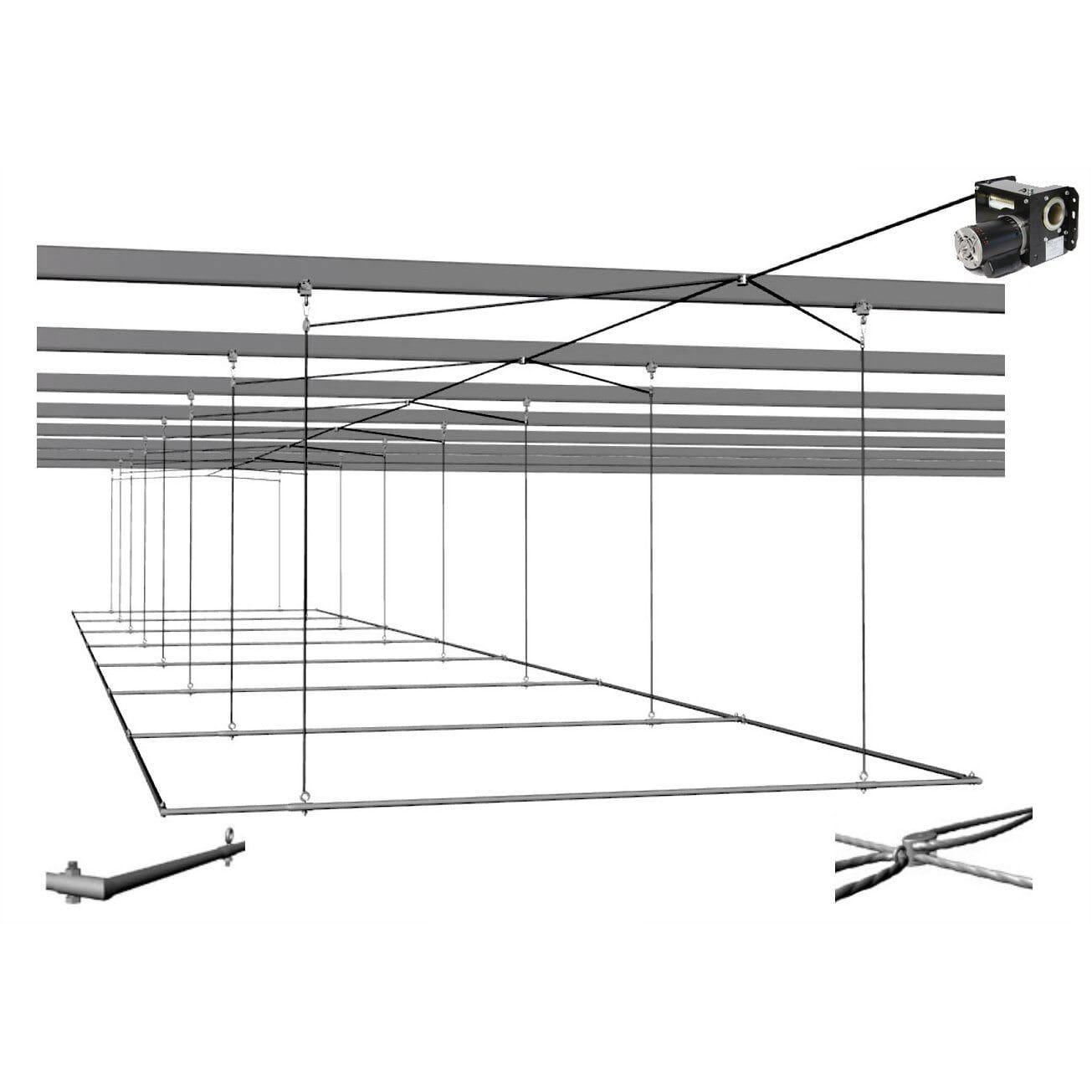

Air Frame Suspended Batting Cage with TW-2000 Winch

Our all new batting cage Air Frame lowers from the ceiling to set up your indoor batting cage in minutes. When you're done, stow the net on the frame and push a button to raise it back to the ceiling. The Air Frame is the perfect option for small batting cage facilities that have a limited amount of space, or any kind of shared space.

What sets the Air Frame apart from other suspended batting cages is the winch operated system. The winch will self level the batting cage, and deploys and retracts the entire cage with the press of a button. The cage itself is constructed with durable 1 1/2"  steel pipe and 1/4" steel cables.

Air Frame Batting Cage Features

  • Constructed of 1½", 16 gauge, galvanized steel pipe
  • Uses heavy duty pulley system and ¼" suspension cable that raises and lowers frame from the ceiling
  • Power winch operated, self-leveling suspension system
  • When not in use, net folds on top of frame to clear air space
  • Adaptable to virtually any ceiling structure
  • Net sold separately

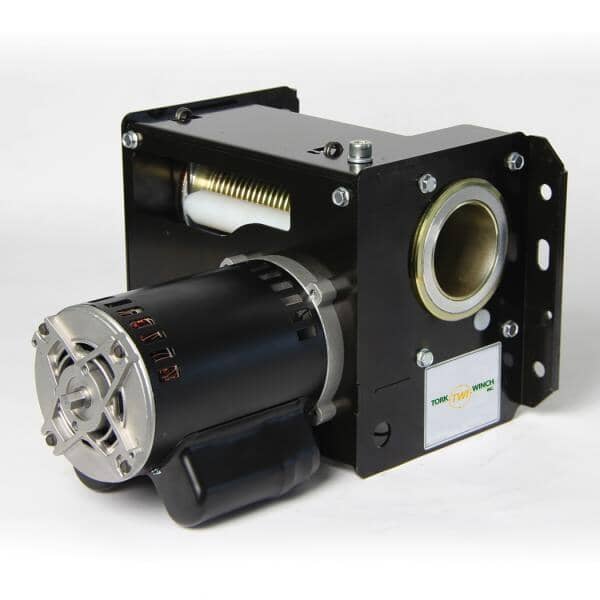

Batting Cage Winch Features

  • Composite gears are self lubricating and eliminate oil - no seals to leak!
  • Direct drive, double reduction gear is safe and durable
  • Single key, instant reverse
  • Cable retention roller prevents unspooling of cable and expensive resetting of limit switches common with other winches when tension is released
  • Speed 11 fpm, direct drive eliminates motor burnout
  • One horsepower motor - over 1600 lbs line pull
  • Includes electric key switch utilizing a single key to both raise and lower a backstop
  • Direct drive oil & maintenance free, no belts or chains
  • One year warranty

Shipping Details: LTL. This item is delivered via commercial motor freight carrier. Keep in mind that a fork lift, loading dock or lift gate service may be required for the delivery of this item.
