SRDL-36-KIT Sports Radar Speed Gun & Display Kit
SR3600 Radar Gun
DL431-R (LED) with three 4" Digits
25' RJ45 Cable
WA-9VDC AC Adapter

SRDL-36-KIT Sports Radar Speed Gun & Display Kit

Sale price$939.99
Free Shipping!
Talk to an expert(888) 466-0009

SRDL-36-KIT Sports Radar Speed Gun & Display Kit

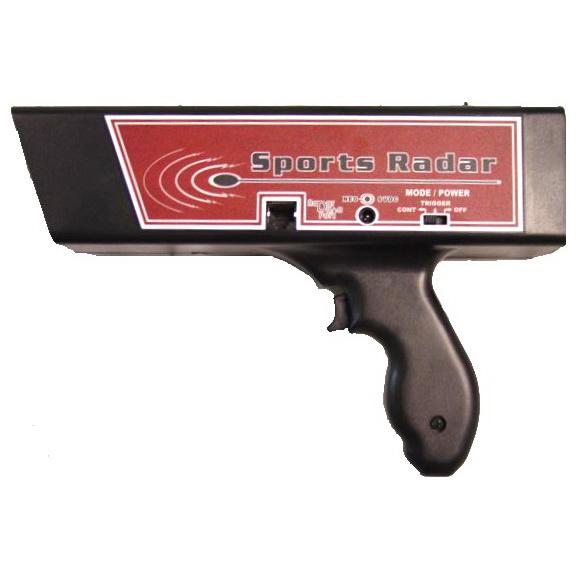

Sports Radar kits are precision training instruments for coaches, players and enthusiasts. Read and display accurate ball and swing speeds for various sports, including but not limited to: baseball, softball, tennis, bowling, golf, auto racing, and more. The included SR3600 radar gun is full featured, reliable, durable and easy to use. Just point and pull the trigger and the target speed is displayed. Our advanced microprocessor based speed detection calculates speeds in just a few feet of target travel.

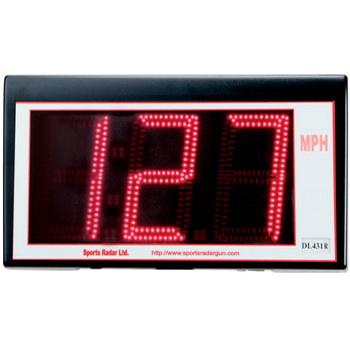

The DL431-R display enhances audience participation by allowing the audience to view the speeds from the sidelines.


  • Mechanical: length, 10-3/4"; width, 2-3/4"; height, 7-1/4"
  • Display Type: 3 digit LCD
  • Speed Range: 10MPH (16 Km/H) to 256MPH (411 Km/H)
  • Speed Units: Miles Per Hour (MPH) or Kilometers per Hour (Km/H)
  • Lightweight high impact resistant design
  • Point and Shoot technology
  • Range: typically 60' on balls, 1,000' on cars
  • Accuracy/ resolution: 3% / 1 MPH or 1 Km/H
  • Displays speeds in MPH or Km/H
  • Trigger or Continuous modes
  • Tripod Mount
  • Data Port
  • External Power Jack
  • Audio Indicator
  • Standard 9V battery operation (2 required)
  • Battery Operating Life Over 5 hours of continuous use, typical 50 hours in
  • trigger mode.
  • Low Battery Indicator
  • Weight: .85 lbs
  • Operating Temperature 14-130 degrees F Storage Temperature -22-158
  • degrees F (excluding batteries)
  • Frequency: X-Band 10.525Ghz
  • 1 Year Limited Warranty


  • Visible up to 200 feet away
  • Mounting methods: Two wall hangers on back, or 1/4-20 Tri Pod mount on the bottom.
  • Power: 9VDC, 350ma, Center Negative, barrel connection 5.5x5.0mm
  • Center post 2.1mm
  • Digits: three 4" Digits
  • Display from 000-999 (Radar guns can only display up to 256mph)

 Kits Include:

  • SR3600 Radar Gun
  • DL431-R (LED) with three 4" Digits
  • WA-9VDC AC Adapter

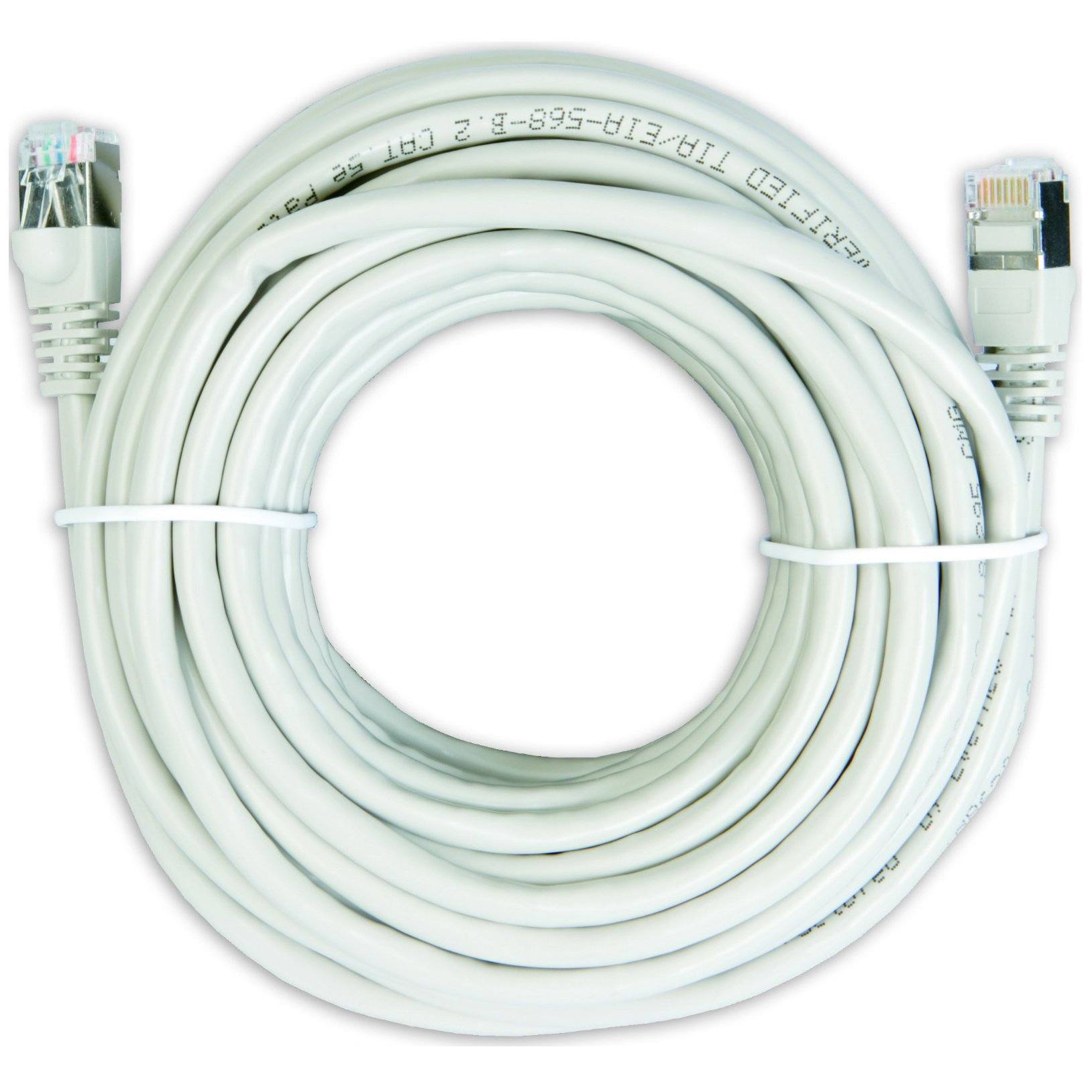

  • 25' RJ45 Cable
  • 1 Year Limited Warranty
  • Hard Plastic Carrying Case
